Rear side lights (VW Lt 2d)

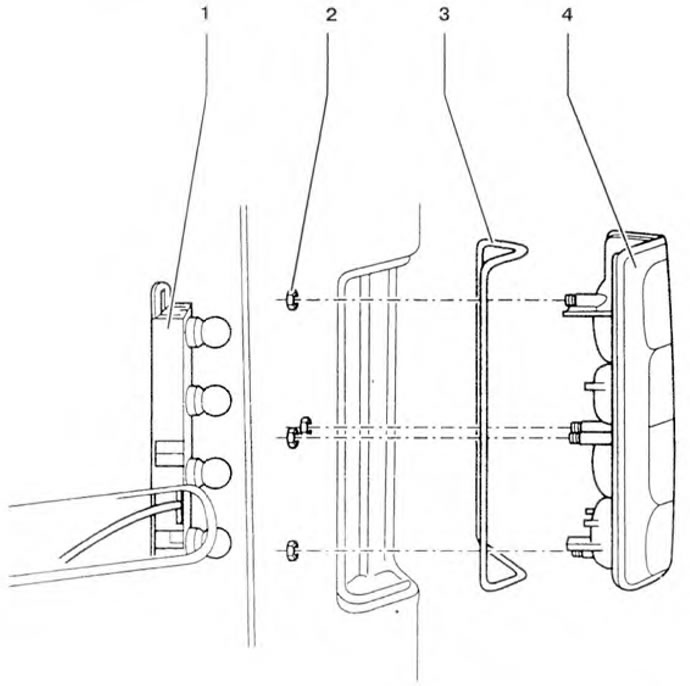

Figure 9.38. Rear side light of a van:1 - Cartridge; 2 - Nut; 3 - Seal; 4 - Diffuser.

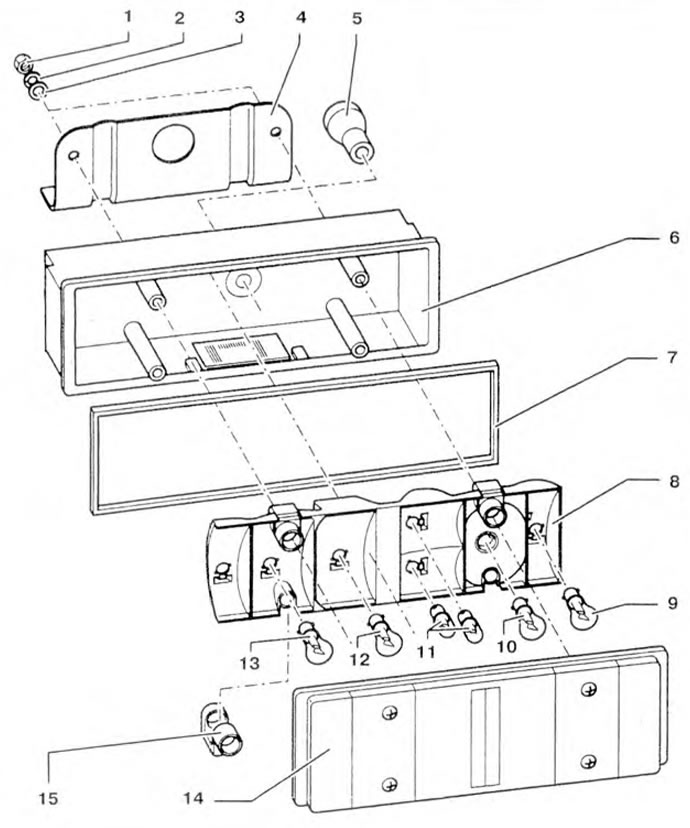

Figure 9.39. Pickup truck rear light: 1 - Nut; 2, 3 - Washer; 4 - Bracket; 5 - Rubber gasket; 6 - Body; 7, 15 - Seals; 8 - Cartridge; 9 - Reversing light bulbs (12 V/21 W); 10 - Rear fog light bulb (only the left one) (12 V/21 W); 11 - Side light bulbs (12 V/5 W); 12 - Brake light bulbs (12 V/21 W); 13 - Direction indicator bulbs (12 V/21 W); 14 - Diffuser.
