Relay block (VW Lt 2d)

The relay box with fuses is shown in the figure 9.43. There is also an additional relay block located under the front passenger seat (figure 9.44).

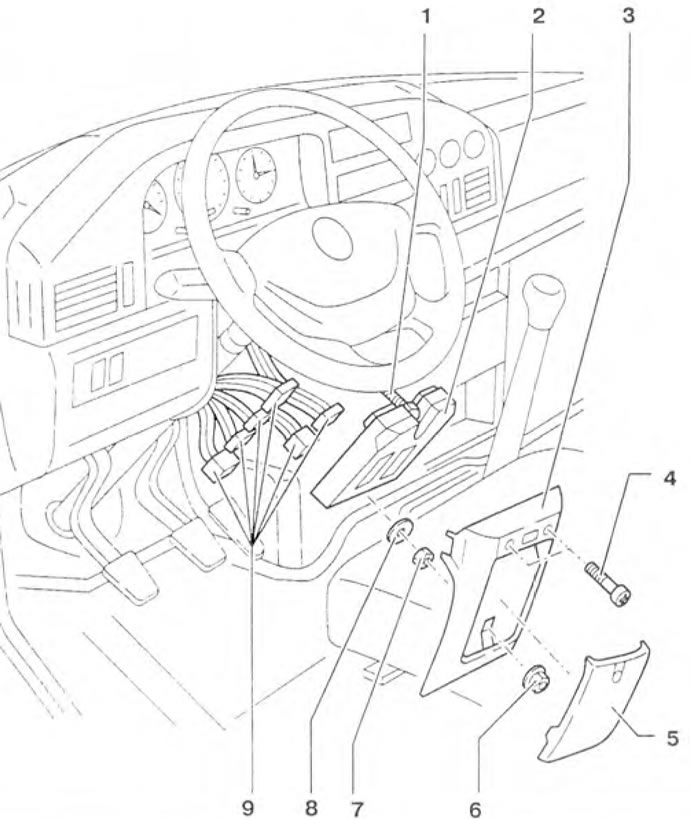

Figure 9.43. Relay box with fuses: 1.4- Bolts; 2 - Relay box with fuses; 3 - Lower steering column panel; 5 - Lid; 6, 7 - Nuts; 8 - Washer; 9 - Wiring connectors on the relay box with fuses.

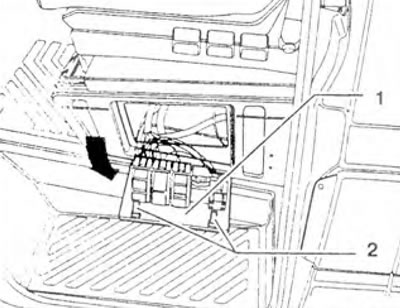

Figure 9.44. Additional relay block under the front passenger seat: 1 - Additional relay block; 2 - Fixators.
