Reading a block of measured values (VW Polo 3)

1. Connect the VAG 1551 fault code reader (V.A.G 1552) and dial "01" "Engine Electronics". The engine should idle. The display should show the following information:


2. Press "08" to select the "Read measured value block" function and confirm by pressing the "Q" button. The display should show the following information:


3. Select the desired group, Press "001" three times to select "Display Group 1" and confirm by pressing the "Q" button. The display should show the following information:

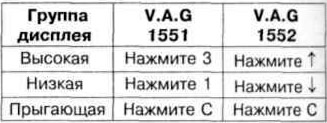

4. Changing display groups is performed in the following sequence.




5. If all required values are reached on the display, press "→". The following information should appear on the display:


6. Press "06" to select the "End output" function and confirm by pressing the "Q" button. Turn off the ignition.
