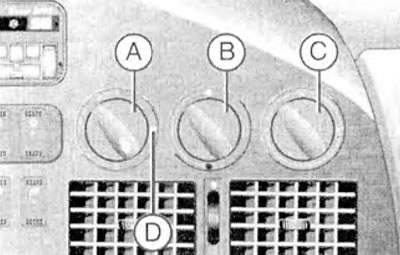

A - Fan air supply regulator and air recirculation mode control. When air recirculation is turned on, the indicator light comes on D; IN- Temperature regulator; WITH - Air distribution regulator.

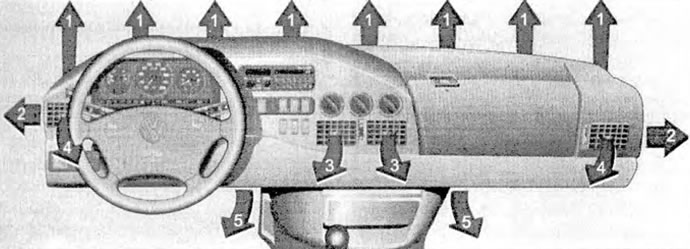

Deflectors
Depending on the position of the regulator IN heated or cold air comes out of the deflectors. The air flow is directed to the deflectors using a regulator WITH.
Deflectors 3 and 4 can be closed or opened individually. In addition, the air flow through these deflectors can change direction - vertical and horizontal.
