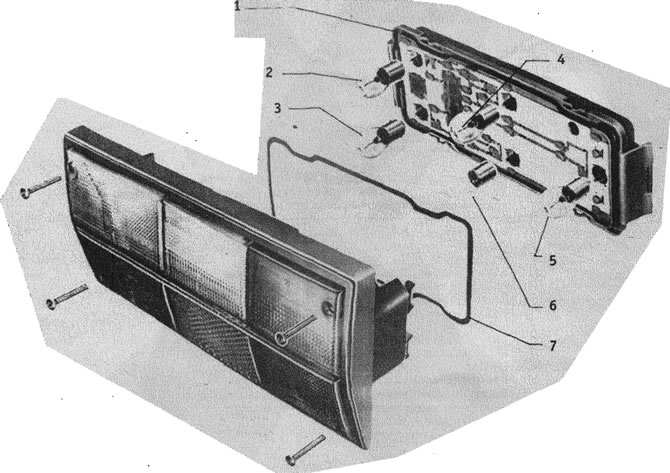

(1) lampholder
(2) turn signal lamp
(3) stop lamp
(4) rear light lamp
(5) rear fog lamp
(6) rear lamp
(7) pad (may not be performance dependent)
Attention: When retrofitting rear light and/or rear fog light, the bulb holder and windows must be replaced.
Dismantling
Unscrew 4 fixing screws.
Pull out the insert together with the diffuser.
Press both clamping tabs in the direction of the arrow and pull out the bulb holder.
Press in the defective bulb a little, turn it to the left and pull it out.
Installation
Insert new bulb, push it in and turn to the right.
Attach the lamp holder to the diffuser.
Fasten the insert with screws.
