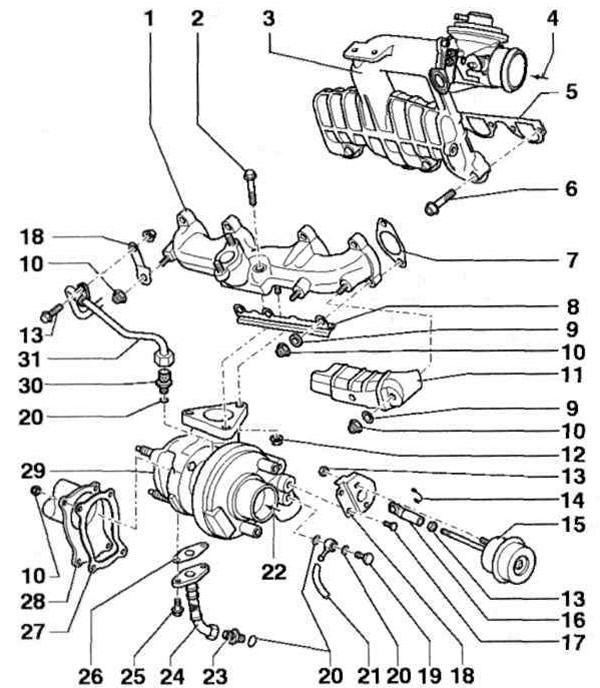

Fig. 7.41 a. Turbocharger with attached AGR engine elements:
1 - Exhaust manifold; 2, 6, 17, 19, 25 - Bolts; 3 - Intake manifold; 4 - From the intercooler; 5, 7, 26, 27 - Gaskets; 8 - Bracket; 9 - Washer; 10, 12, 13 - Nuts; 11 - Heat-protective casing; 14 - Retaining ring; 15 - Receiver (for boost pressure control valve); 16 - Rod; 18 - Retainer; 20 - Seal; 21 - Tube, to the boost pressure control solenoid valve; 22 - From the air filter; 23 - Adapter; 24 - Oil drain line; 28 - Front part of the exhaust pipe; 29 - Turbocharger; 30 - Adapter; 31 - Oil pressure line.

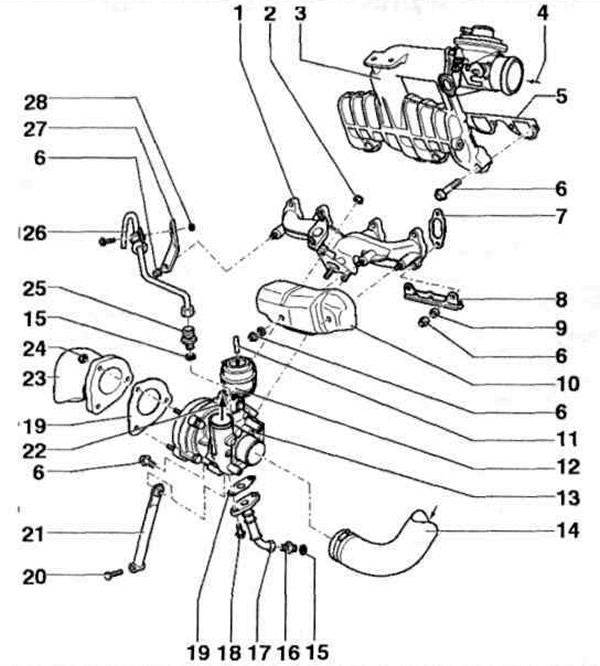

Fig. 7.41 b. Turbocharger with attached elements of ALH, ASV engines:
1 - Exhaust manifold; 2, 6, 18, 20 - Bolts; 3 - Intake manifold; 4 - From the intercooler; 5, 7, 19 - Gaskets; 8 - Bracket; 9 - Washer; 10 - Heat-protective casing; 11 - Tube, to the boost pressure control solenoid valve; 12 - Receiver (for boost pressure control valve); 13 - Turbocharger; 14 - From the air filter; 15 - Seal; 16, 25 - Adapters; 17 - Oil drain line; 21, 27 - Fixators; 22 - To the intercooler; 23 - Front part of the exhaust pipe; 24, 28 - Nuts; 26 - Oil pressure line.
