Adjusting windshield and headlight washers (VW Polo 3)

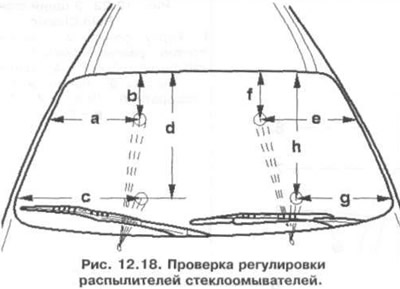

Checking windshield washer nozzles (fig. 12.18).

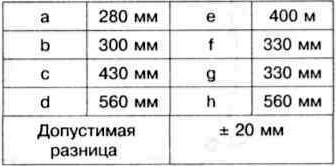

Adjusting windshield washer sprayers

Adjusting headlight washers

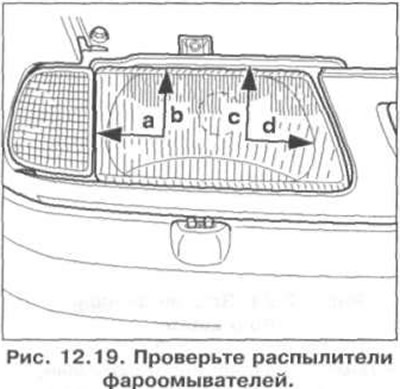

Check the headlight washer nozzles (fig. 12.19).



Install: external sprayer: a - 130 mm, b - 60 mm; internal spray: c - 65 mm, d - 125 mm.

Adjusting the rear window wipers

Caddy

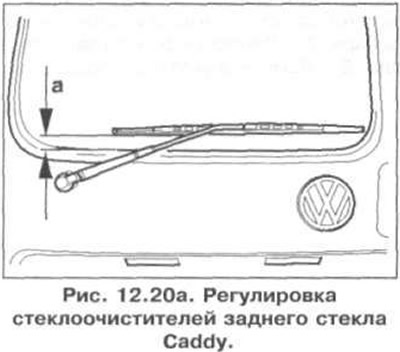

The distance "a" between the wiper arm and the lower edge of the window should be 15 mm (fig. 12.20 a).

Polo Estate

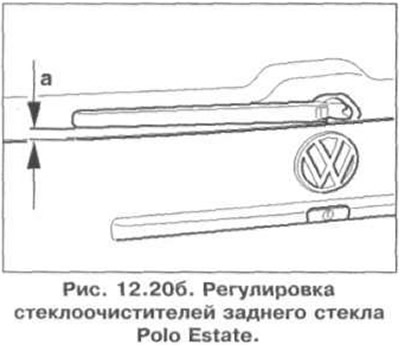

The distance "a" between the wiper arm and the lower edge of the window should be 25 mm (fig. 12.20 b).
