Starter, battery, alternator, ignition switch (2.1L engine) (VW Transporter T3)

Starter, battery, alternator, ignition switch (2.1L engine)

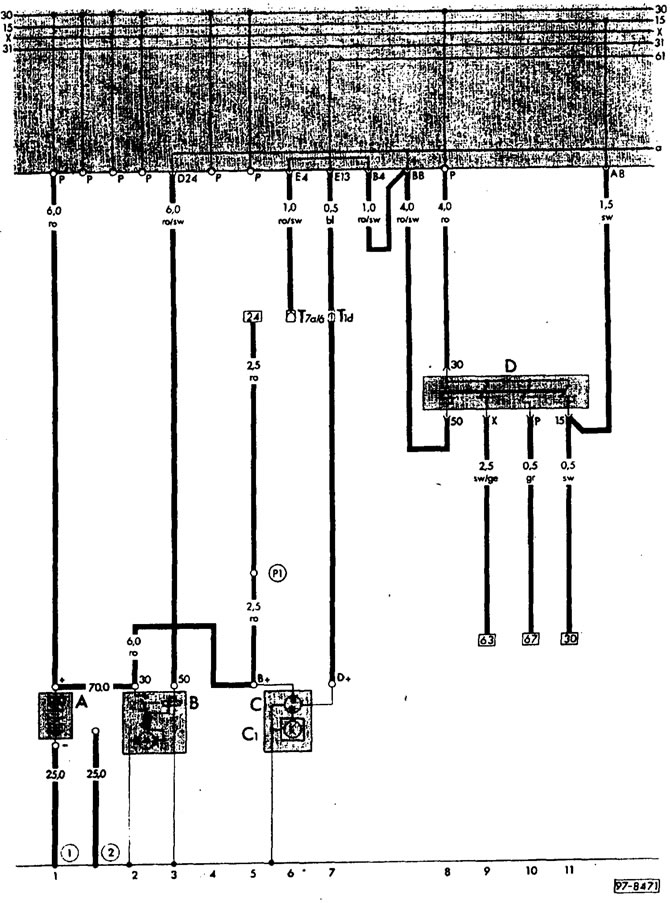

A - Battery
B - Starter
C - Alternating current generator
C1 - Voltage regulator
D - Ignition switch
T1d - Connector, 1 contact, 8 junction box - engine compartment
T7a - Connector, 7 contacts, in the distribution box - engine compartment
(1) - Battery - body ground jumper
(2) - Gearbox - body ground jumper
(P1) - Ground connection (30), in the junction box - engine compartment
