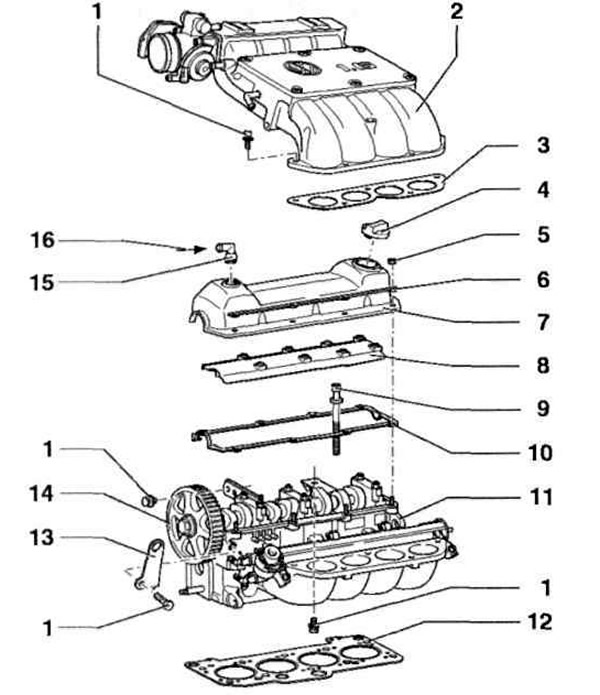

Pic. 5.2 a. AFT engine elements:
1, 9 - Bolts; 2 - The upper part of the intake manifold; 3 - Gasket; 4 - Oil filler cap; 5 - Nut; 6 - Reinforcing bar; 7 - Cylinder head cover; 8 - Oil deflector; 10 - Cylinder head cover gasket; 11 - Cylinder head; 12 - Laying of a head of the block of cylinders; 13 - Lifting eye; 14 - Camshaft pulley; 15 - Adapter; 16 - From the crankcase ventilation tube.
Pic. 5.2 b. Elements of 1F and ADZ engines:
1 - Oil filler cap; 2 - Nut; 3 - Reinforcing bar; 4 - Cylinder head cover; 5 - Oil deflector; 6.11- Bolts; 7 - Laying of a cover of a head of the block of cylinders; 8 - Cork; 9 - Cylinder head; 10 - Laying of a head of the block of cylinders; 12 - Bracket; 13 - Camshaft pulley.

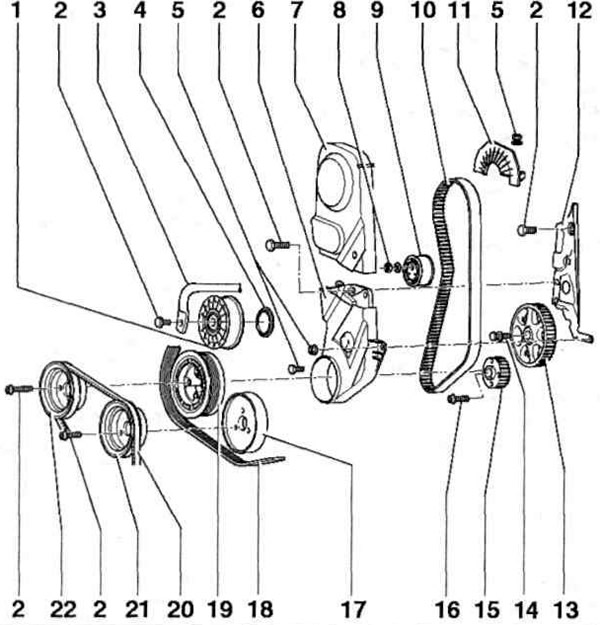

Pic. 5.2 in. Engine elements:
1 - Tension roller; 2, 14, 16 - Bolts; 3 - Tension lever; 4 - Dust cover; 5 - Bolt with nut; 6 - The lower part of the timing belt cover; 7 - Upper part of the timing belt cover; 8 - Nut; 9 - Timing belt tensioner; 10 - Toothed timing belt; 11 - Timing belt cover; 12 - Rear timing belt cover; 13 - Intermediate shaft pulley; 15 - Toothed pulley of the crankshaft; 17 - Coolant pump pulley (ribbed belt versions); 18 - Ribbed belt; 19 - Crankshaft pulley / damper; 20 - V-ribbed belt; 21 - Coolant pump pulley (poly V-belt versions); 22 - Pulley.

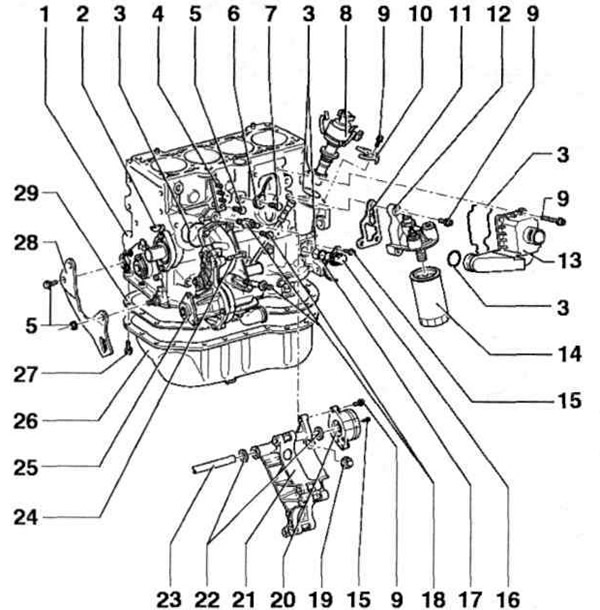

Pic. 5.2 d. Elements of engines:
1 - Cylinder block; 2 - Key; 3 - O-ring; 4 - Connection on «mass» engine; 5 - Bolt with nut; 6 - Knock sensor (only on AFT engine); 7, 9, 15, 18, 24, 27 - Bolts; 8 - Distributor; 10 - Clamp; 11, 29 - Gaskets; 12 - Oil filter bracket; 13 - Engine breather; 14 - Oil filter; 16 - Crankshaft speed sensor (only on AFT engine); 17 - Support rings; 19 - Nut; 20 - Tension element; 21 - Bracket; 22 - O-rings; 23 - Tension lever; 25 - Pump of the cooling system; 26 - Pallet; 28 - Power steering pump bracket.
