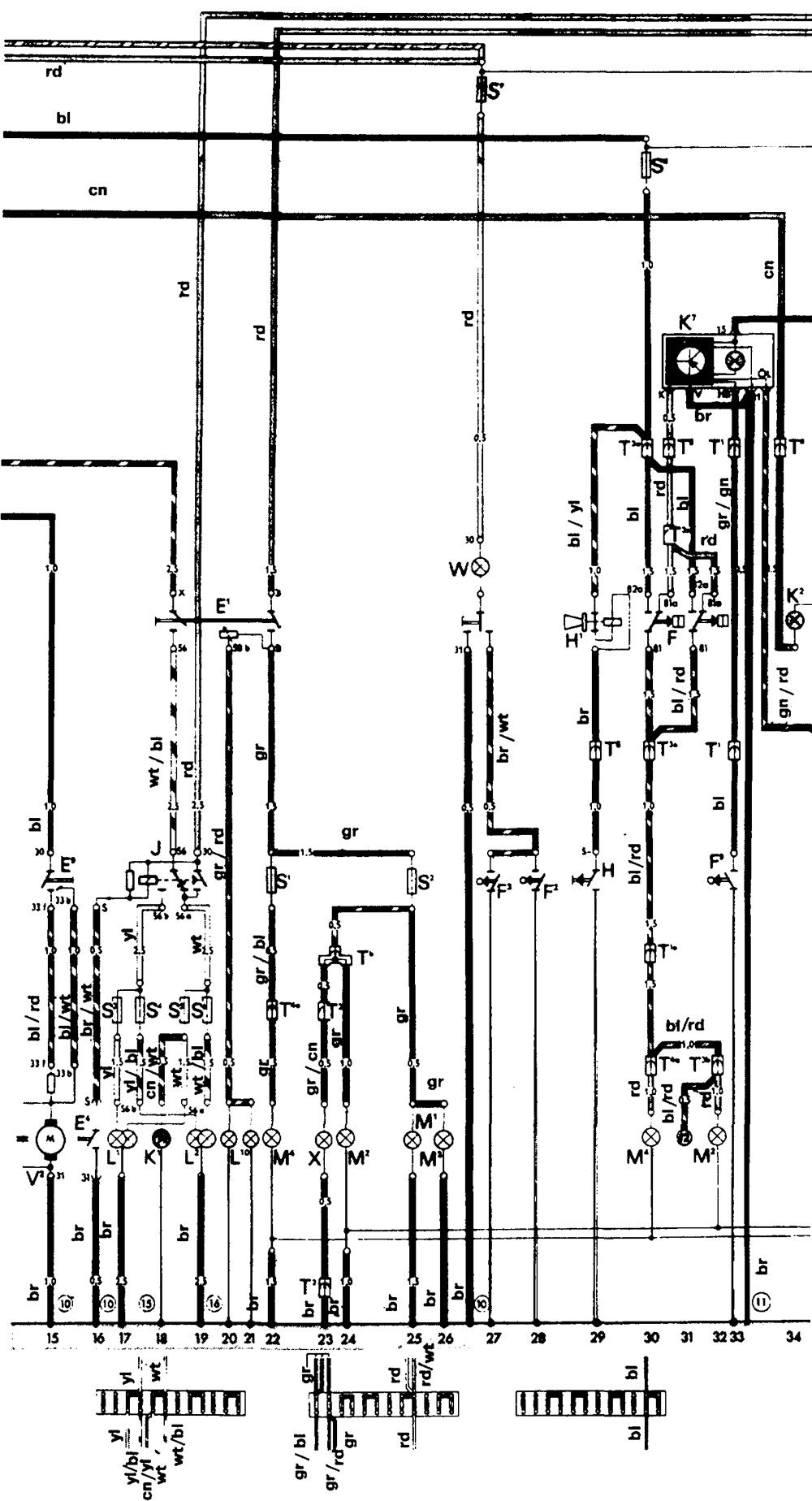

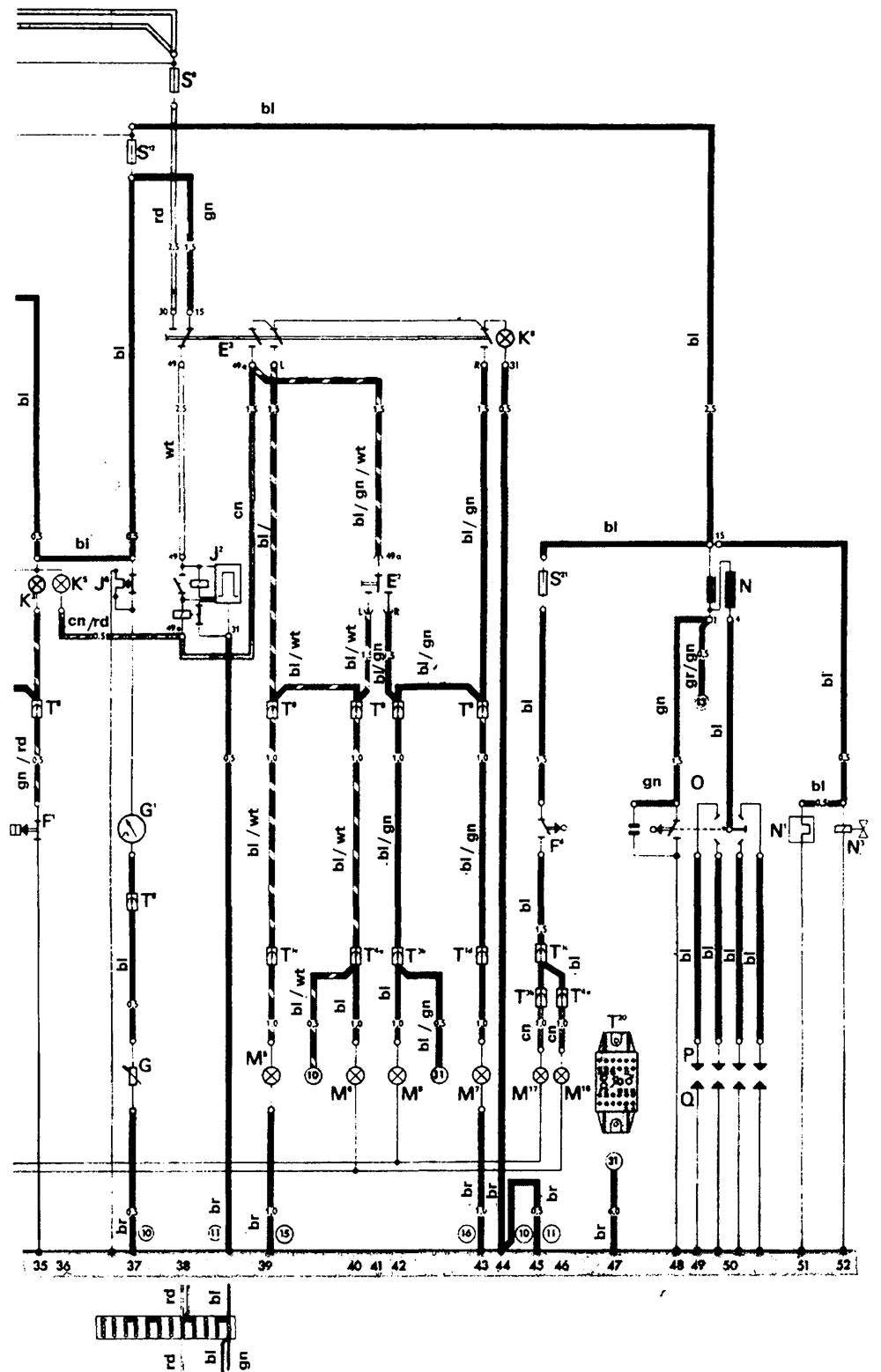

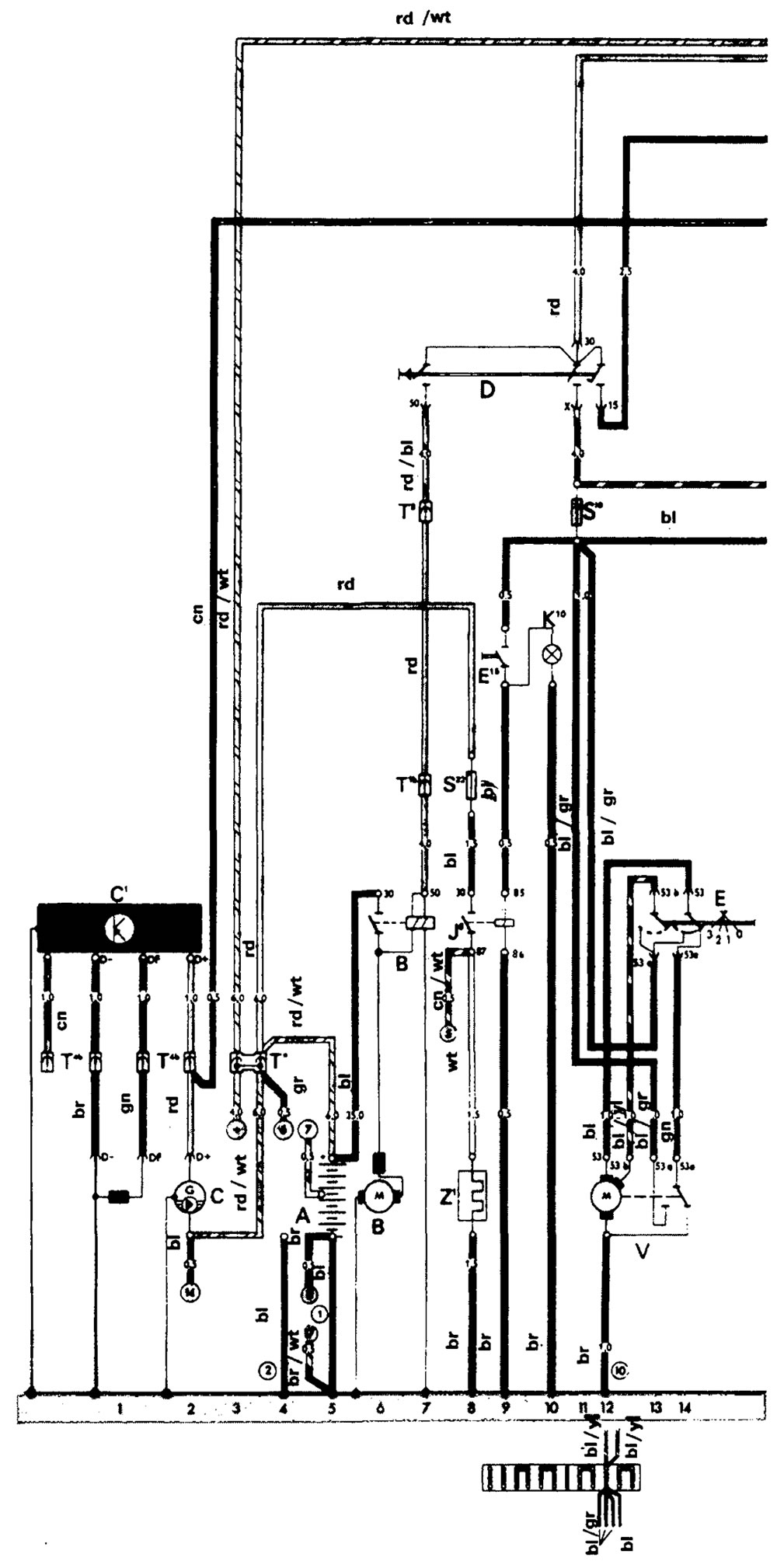

| Designation | Element name | Section of the chain |
| A | Battery | 5 |
| IN | Starter | 6, 7 |
| WITH | Generator | 1, 2 |
| C1 | Voltage regulator | 1, 2 |
| D | Ignition switch | 7, 11, 12 |
| E | Windscreen wiper switch | 13, 14 |
| E1 | Light switch | 18,20, 22 |
| E2 | Turn signal switch | 41 |
| E3 | Hazard warning light switch | 38, 39, 43 |
| E4 | Low beam and light signal switch | 16 |
| E9 | Fan switch | 15 |
| E15 | Rear window defroster switch | 9 |
| F | Brake light switch | 30, 31, 32 |
| F1 | Oil pressure sensor | 35 |
| F2 | Switch on the left door | 28 |
| F3 | Switch on the right door | 27 |
| F4 | Reversing light switch | 45 |
| F9 | Parking brake indicator light switch | 33 |
| G | Fuel level sensor | 37 |
| G1 | Fuel level indicator | 37 |
| N | Sound signal button | 29 |
| H1 | Sound signal | 29 |
| J | Relay for switching to low beam and light signal | 16, 17, 18, 19 |
| J2 | Alarm relay | 38 |
| J6 | Voltage stabilizer | 37 |
| J9 | Rear window heating relay | 8, 9 |
| K1 | High beam indicator lamp | 18 |
| K2 | Generator operation indicator light | 34 |
| K3 | Oil pressure warning light | 35 |
| K5 | Direction indicator lamp | 36 |
| K6 | Hazard warning light | 44 |
| K7 | Brake and parking brake warning light | 31, 32, 33 |
| K10 | Rear window heating indicator lamp | 10 |
| L1 | Double filament left headlight bulb | 17 |
| L2 | Double-filament right headlight bulb | 19 |
| L10 | Speedometer illumination lamp | 20, 21 |
| M1 | Left parking light | 25 |
| M2 | Rear right side light | 24 |
| M2 | Right brake light | 32 |
| M3 | Right parking light | 26 |
| M4 | Rear left side light | 22 |
| M4 | Left brake light | 30 |
| M5 | Front left turn signal | 39 |
| M6 | Rear left turn signal | 40 |
| M7 | Front right turn signal | 43 |
| M8 | Rear right turn signal | 42 |
| M16 | Left reversing light | 46 |
| M17 | Right reversing light | 47 |
| N | Ignition coil | 49, 50 |
| N1 | Automatic starting system | 51 |
| N3 | Solenoid shut-off valve | 52 |
| 0 | Distributor | 48, 49, 50 |
| R | Spark plug tips | 49, 50 |
| Q | Spark plugs | 49,50 |
| S1-S12 | Fuses | 11, 17,19, 22, 25, 27, 30, 37, 38 |
| S21 | Reversing light fuse (8 A) | 45 |
| S22 | Rear window defroster fuse (8A) | 8 |
| T | Wiring harness | |
| a | under the back seat | |
| b | behind the engine shield | |
| T1 | 1-pin connector | |
| a | behind the dashboard | |
| bb | under the back seat | |
| with | with a motor shield | |
| d | in the trunk on the front right | |
| e | in the trunk on the front left | |
| T2 | 2-pin connector | |
| T3 | 3-pin connector | |
| a | in the trunk on the left | |
| b | behind the engine shield | |
| with | in the engine compartment | |
| T4 | a - 4-pin connector behind the engine shield | |
| T4 | b - 4-pin connector under the rear seat | |
| T8 | 8-pin connector behind the instrument panel | 47 |
| T20 | Central connector | 48 |
| V | Windscreen wiper motor | 12, 13, 14 |
| V2 | Heater fan motor | 15 |
| W | Interior lighting | 27 |
| X | License plate light | 23 |
| Z1 | Rear window defroster | 8 |
| Connections to "mass" | ||
| 1 | Ground wire from the battery to the body | 5 |
| 2 | Ground wire from the generator to the body | 4 |
| 10 | Instrument cluster ground terminal | - |
| 11 | Speedometer ground terminal | - |
| 15 | Ground terminal in the trunk, front left | - |
| 16 | Ground terminal in the trunk, front right | - |
